Lifting style
1. A jacking mechanism is installed on the top of the AGV;
2, AGV hidden into the bottom of the material car, through the top of the AGV jacking mechanism device up, down to achieve automatic lifting and unloading of the material car, so as to realize the AGV automatic lifting and handling of the material car.
Xiangyang Olis Intelligent Equipment Technology Co., Ltd.
Honda

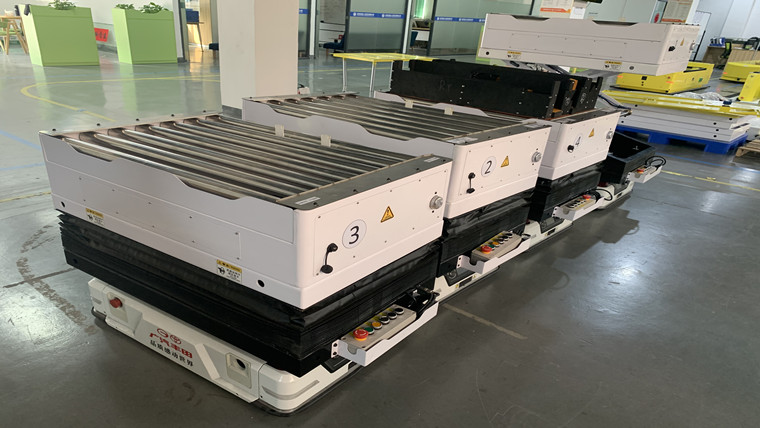

Lifting, automatic docking delivery AGV
1, the jacking AGV is especially suitable for the use of material trucks, shelves to transport the material scene;
2. It is suitable for handling the material truck when the chassis of the material truck is relatively high from the ground.
3. It is applicable to the scene where loading and unloading materials need to be automatically connected with the line-side conveying line or production line:
4. Replace the traditional automatic conveying line to realize the scene of flexible production material transportation.
Toyota

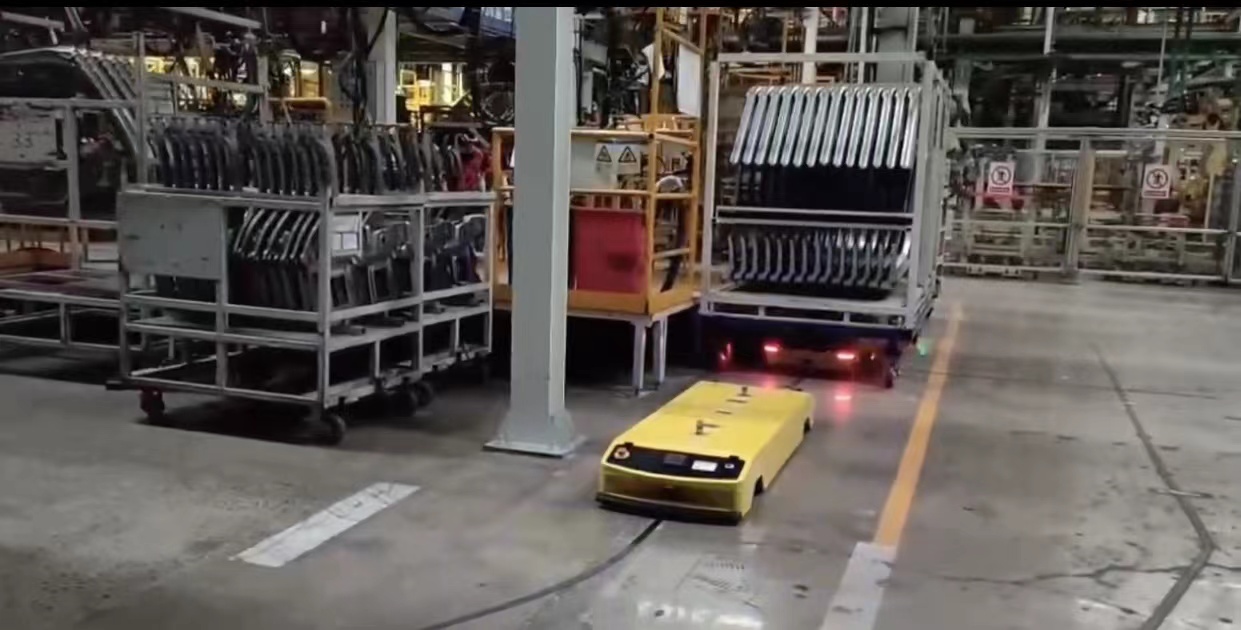

Latent traction type
1, the latent traction AGV is especially suitable for the use of material vehicles, shelves to transport the material scene;
2. It is suitable for handling the material truck when the chassis of the material truck is relatively high from the ground;
3, need to carry more than one material car, and the material car bottom space is high enough, can use this way of transport.

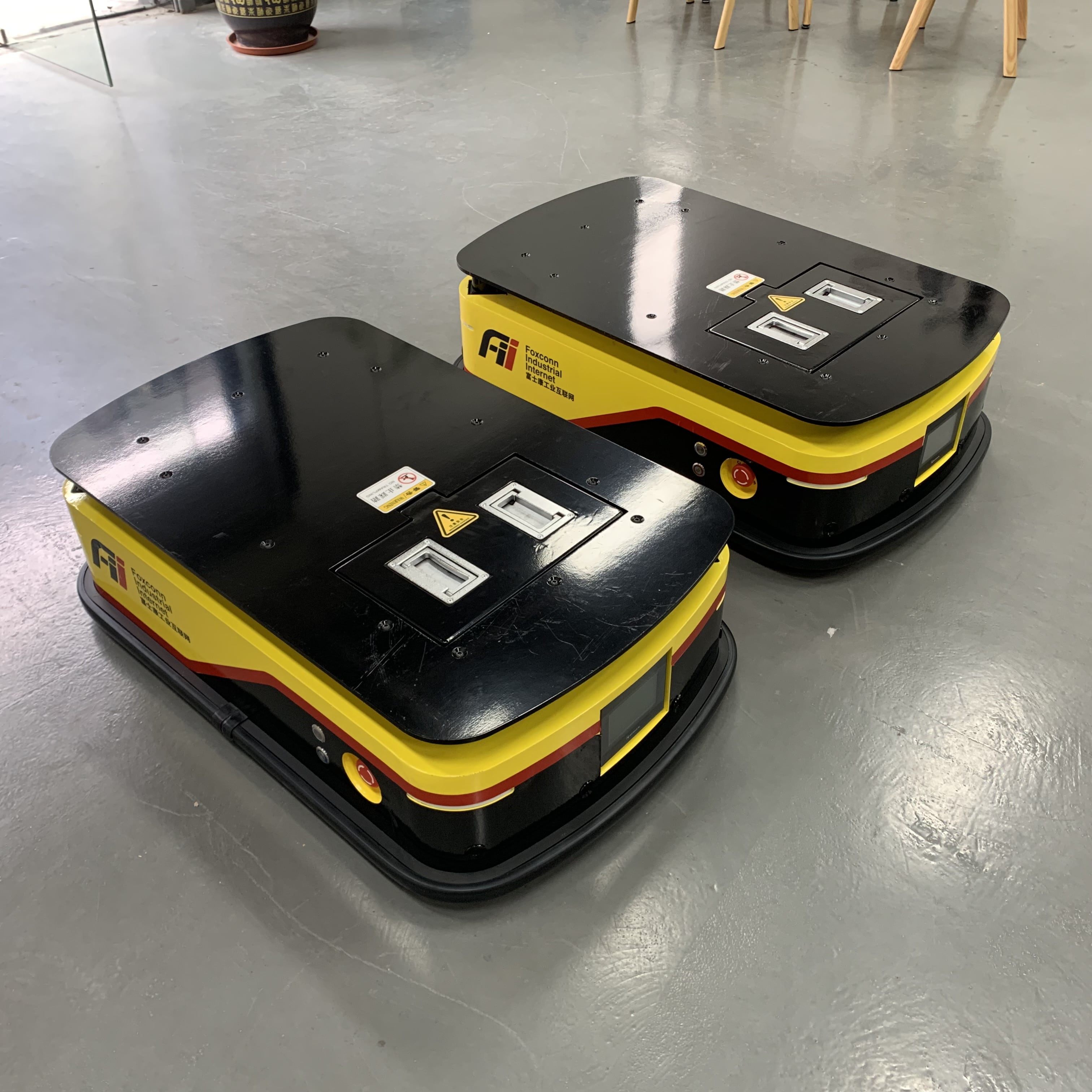

Foxconn

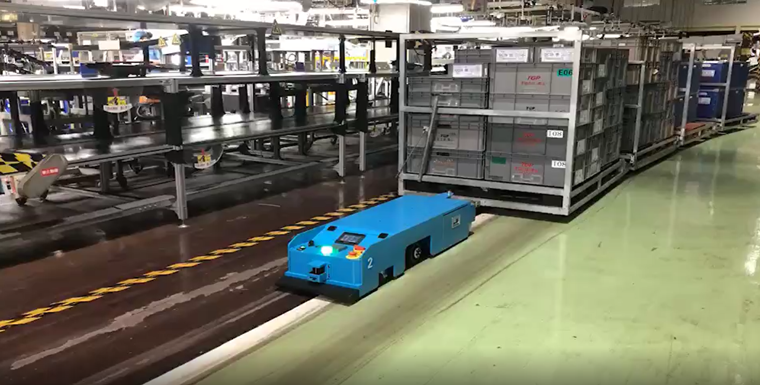

Lifting style
1, the jacking AGV is especially suitable for the use of material trucks, shelves to transport the material scene;
2. It is suitable for handling the material truck when the chassis of the material truck is relatively high from the ground.
Hangzhou Taipu Machinery

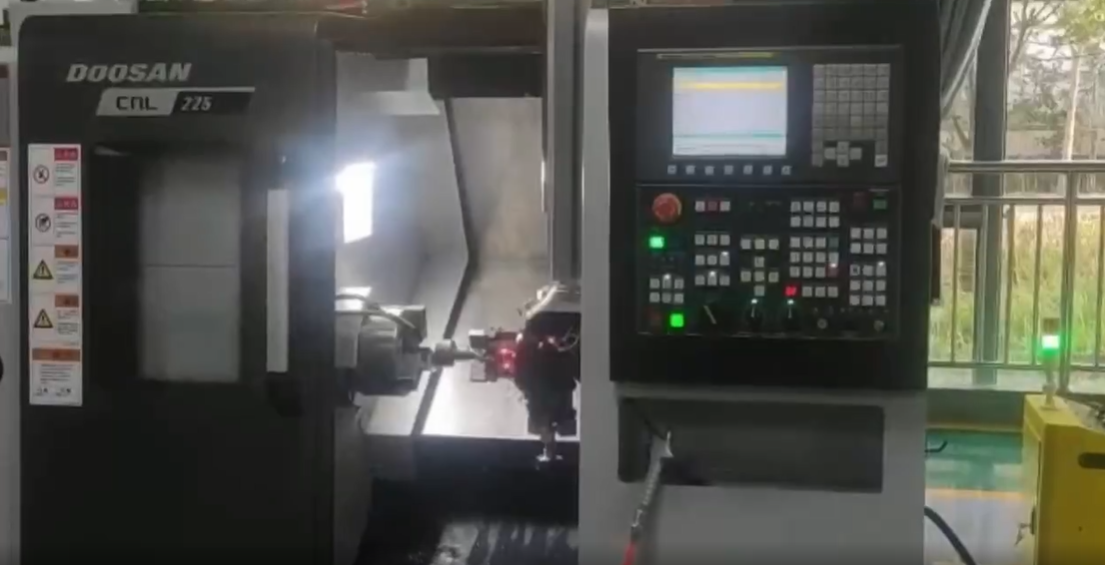

Lifting style
1, the jacking AGV is especially suitable for the use of material trucks, shelves to transport the material scene;
2. It is suitable for handling the material truck when the chassis of the material truck is relatively high from the ground.
Haier

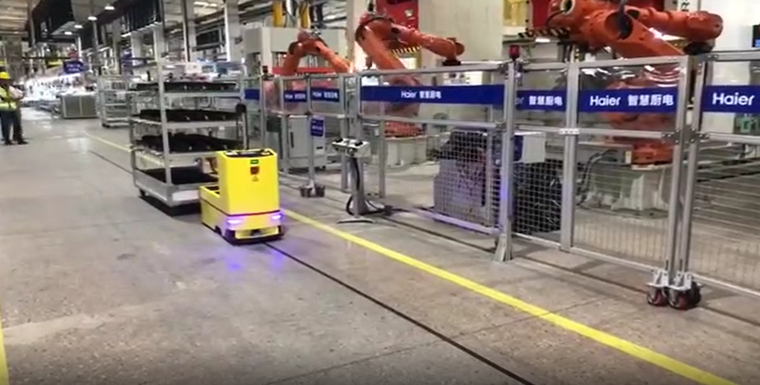

Tail traction type
1. If the material truck is equipped with casters, and AGV cannot be carried in this way when running at the bottom of the skip car;
2. It is suitable for handling the material truck when the chassis of the material truck is low from the ground;
3, need to carry more than one material car, and the material car bottom space is limited, can use this way of transport.
Tsinghua University

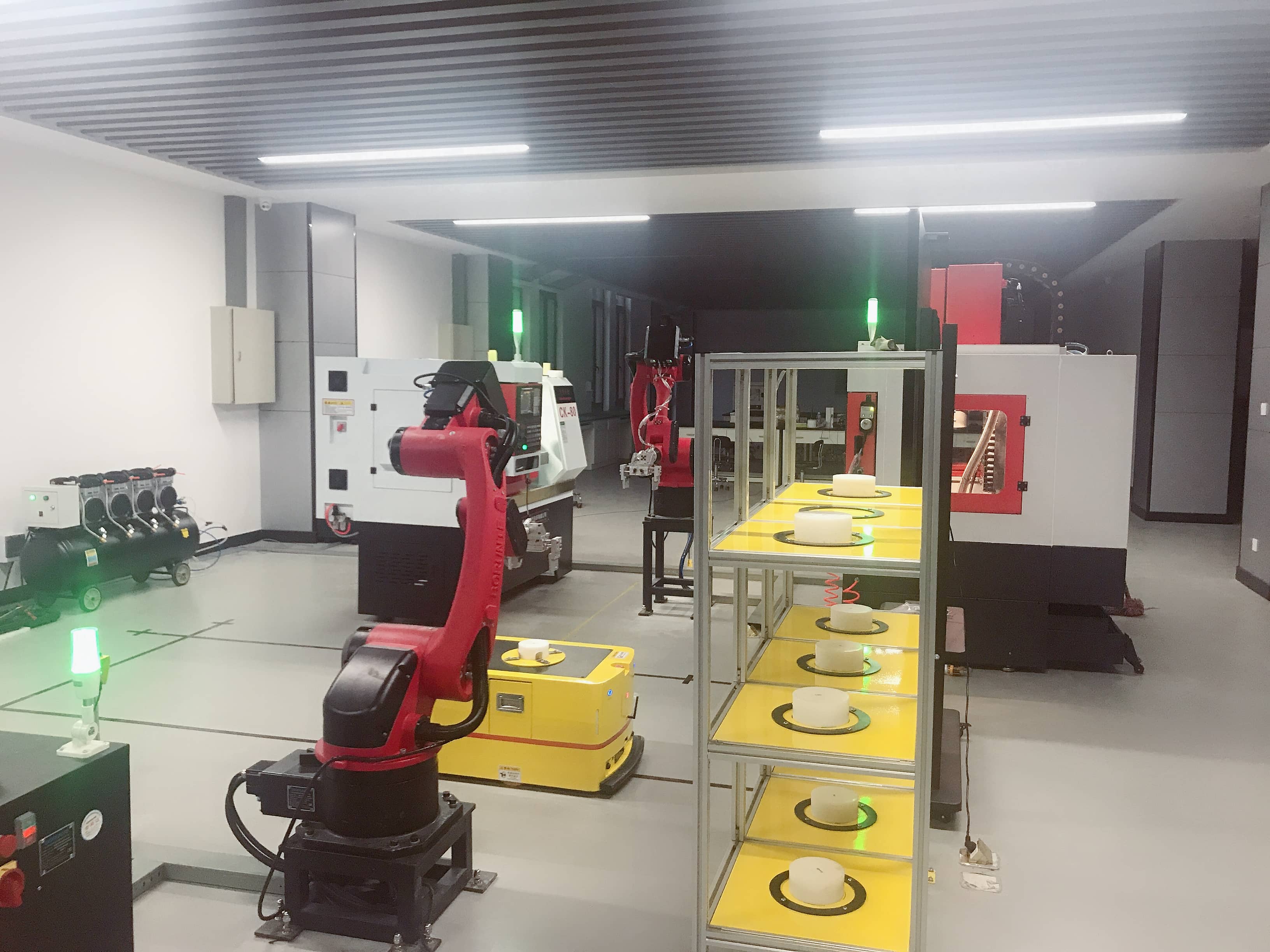

Automatic docking and conveying
1. It is applicable to the scene where loading and unloading materials need to be automatically connected with the line-side conveying line or production line:
2. Replace the traditional automatic conveying line to realize the scene of flexible production material transportation.
Shanghai General Motors Wuling

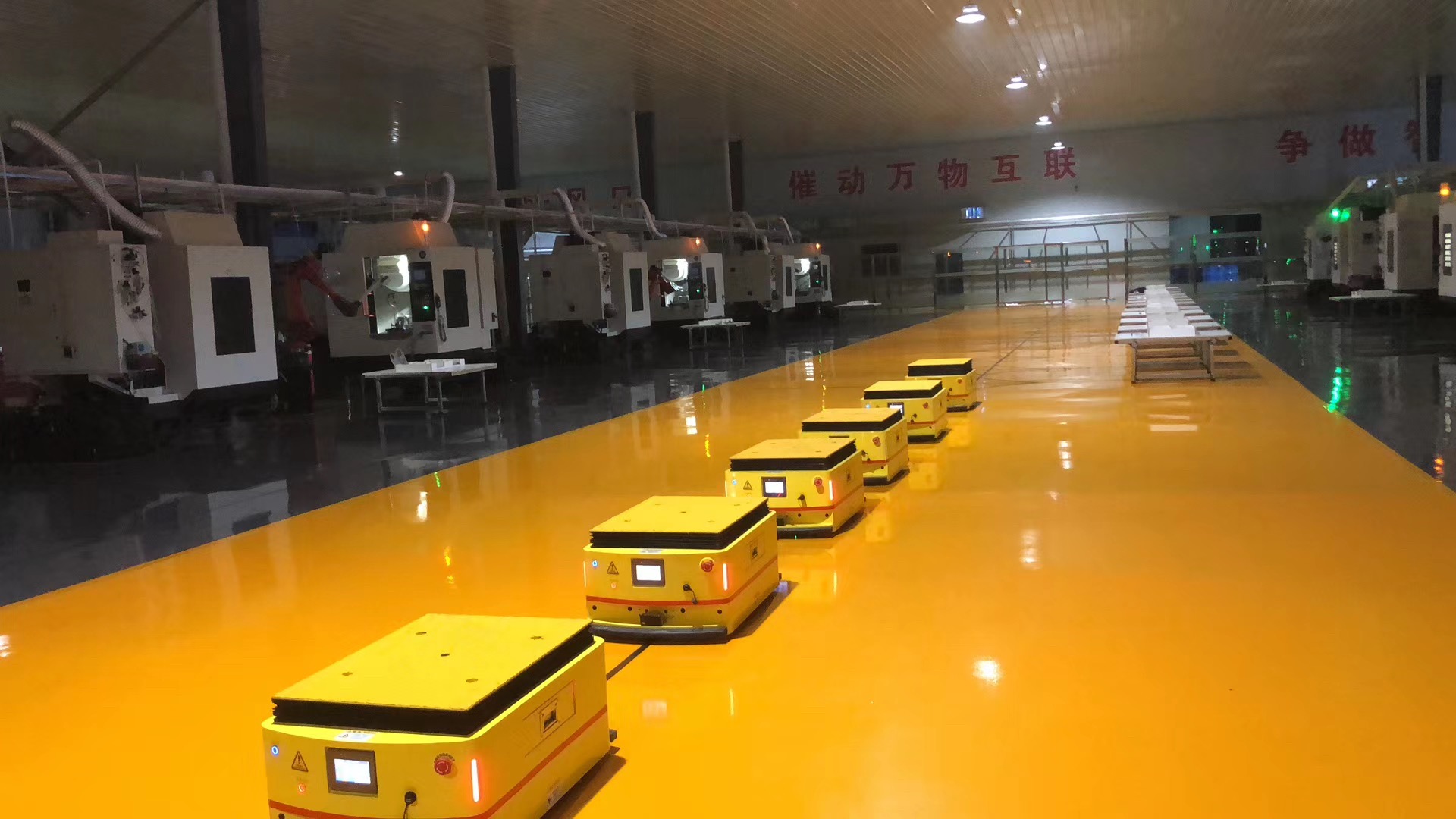

Latent traction type
1, the latent traction AGV is especially suitable for the use of material vehicles, shelves to transport the material scene;
2. It is suitable for handling the material truck when the chassis of the material truck is relatively high from the ground;
3, need to carry more than one material car, and the material car bottom space is high enough, can use this way of transport.
Xi'an Jiaotong University
knapsack
1, the material is placed directly on the top of the AGV;
2, the material box is placed directly on the top of the AGV;
3. The material tray is fixed on the top of the AGV, and the material is placed on the tray. The AGV carries the tray full of materials for automatic transportation and distribution of materials;
4. The material rack is fixed on the top of the AGV, and the material is placed on the material rack. The AGV carries the material rack full of materials for automatic transportation and distribution of materials.
China FAW Hongqi Automobile

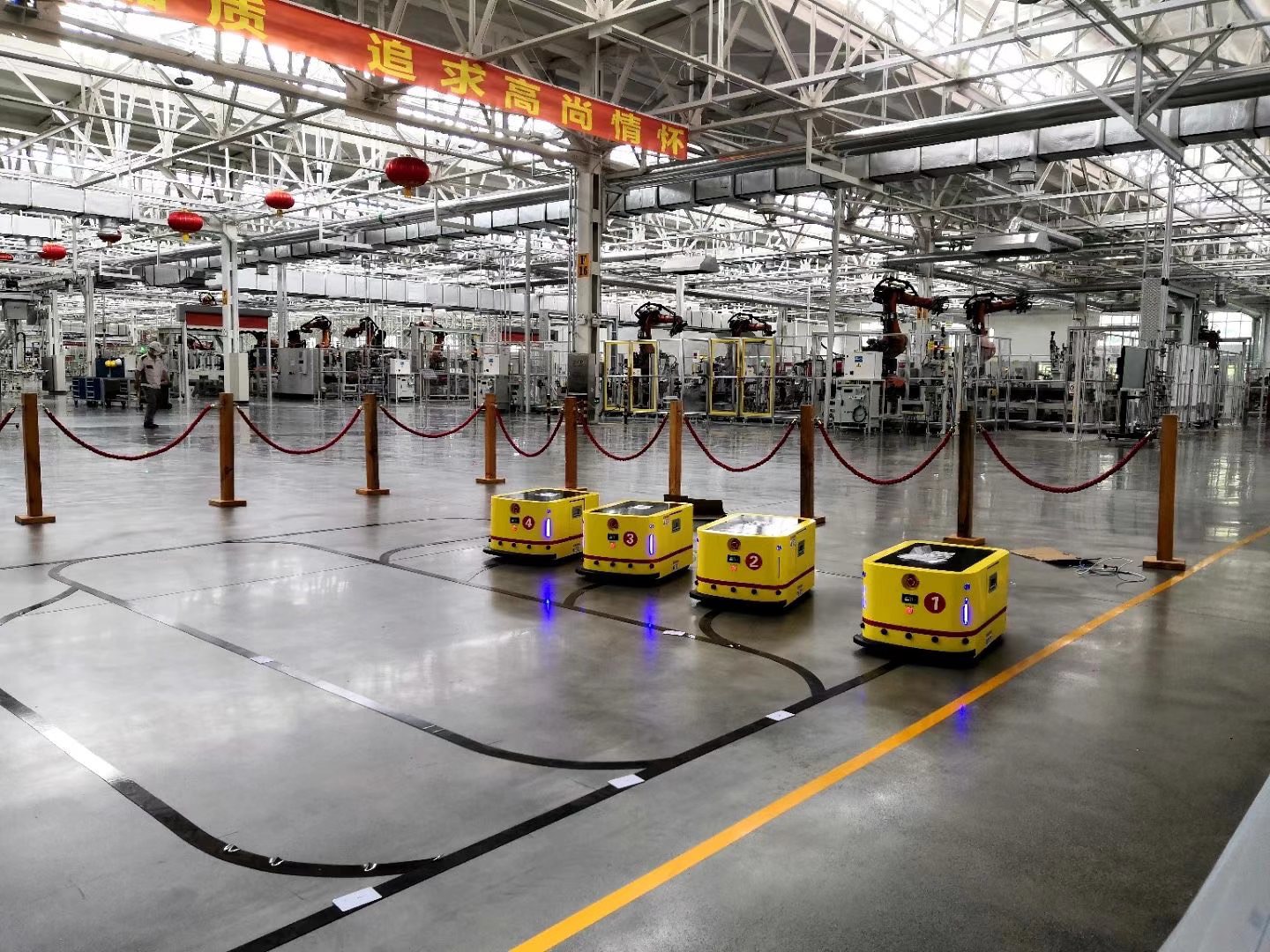

Lifting style
1, the jacking AGV is especially suitable for the use of material trucks, shelves to transport the material scene;
2. It is suitable for handling the material truck when the chassis of the material truck is relatively high from the ground.
