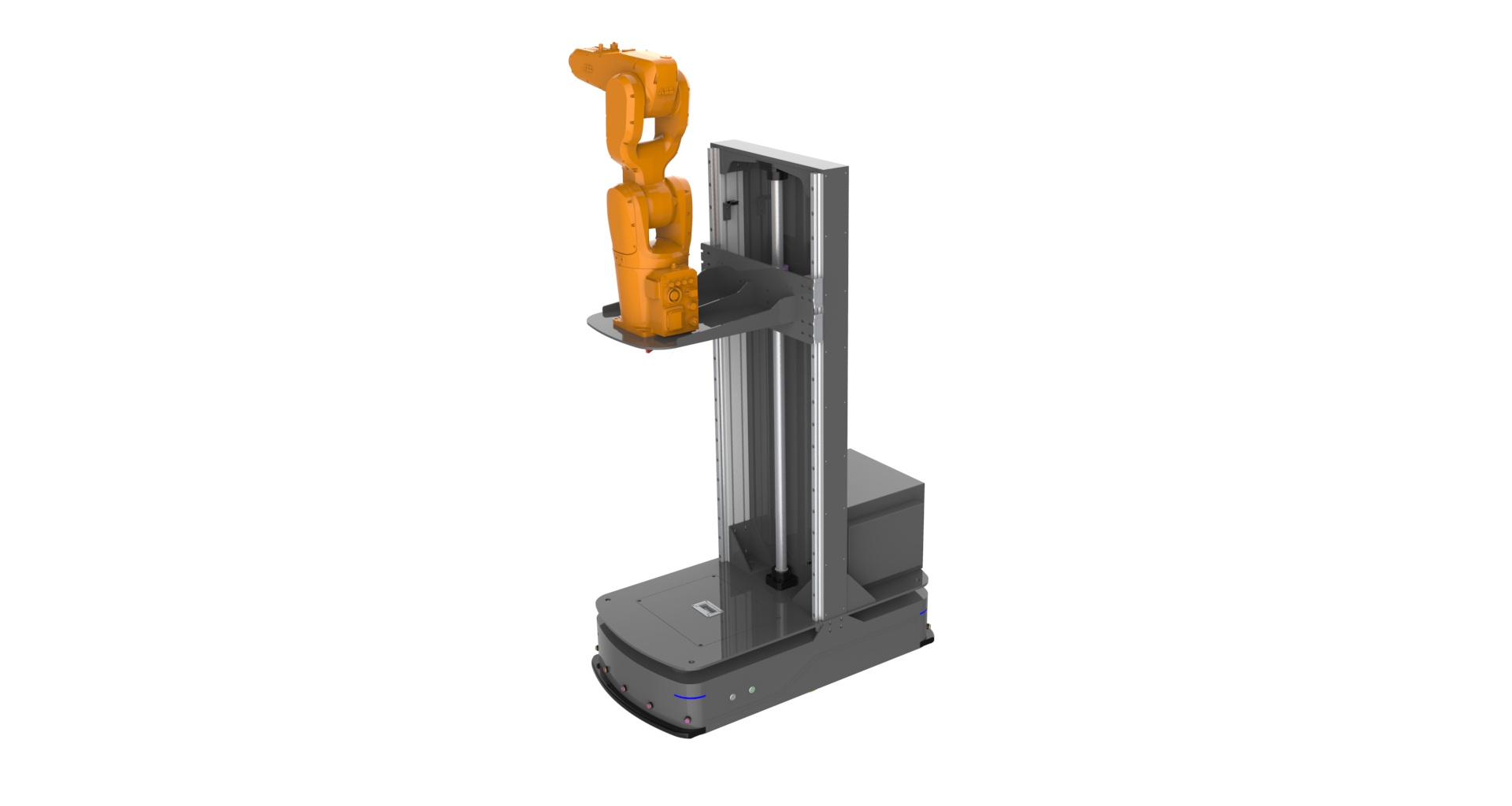

AGV+ manipulator composite robot （TL-FH-1890SX-001）
AGV+ manipulator composite robot （TL-FH-1890SX-001）
AGV+ manipulator composite robot （TL-FH-1890SX-001）
- Load type: lifting type, the maximum lifting quality is 100Kg;
- Overall size: L1260mm*W650mm*H1890mm/ lifting stroke 350mm~1580mm (or customized size according to demand);
- Navigation: magnetic strip navigation;
- Drive mode: differential drive;
- Walking direction: forward, backward, 90°/180°/360° rotation, arc turning;
- Driving speed: ≤40m/min;
- Power battery: DC24V/80AH lithium iron phosphate battery, battery life of 8~12 hours, offline charging (automatic charging function optional).
- Note: The manipulator can be provided by the customer or by our company.
