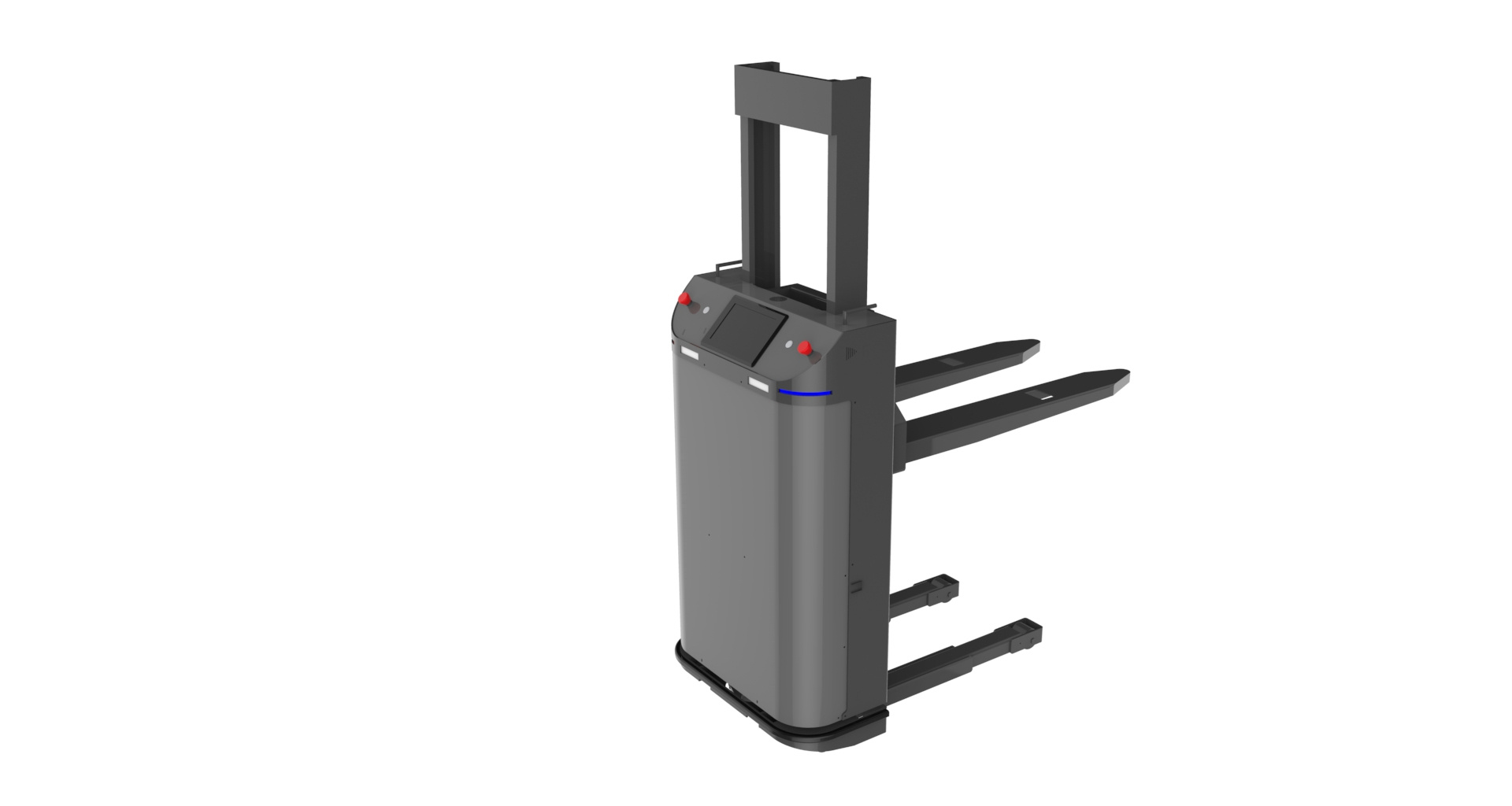

QR code vision + inertial hybrid navigation stacking lift truck AGV (TL-EW-L15-001
QR code vision + inertial hybrid navigation stacking lift truck AGV (TL-EW-L15-001
QR code vision + inertial hybrid navigation stacking lift truck AGV (TL-EW-L15-001
QR code vision + inertial hybrid navigation stacking lift truck AGV (TL-EW-L15-001

QR code vision + inertial hybrid navigation stacking lift truck AGV (TL-EW-L15-001

  1. Load type: lifting type, maximum load mass 1500Kg;
  2. Overall size: L1620mm*W820mm*H2000mm/ lifting stroke 80~2000mm (or customized size according to demand);
  3. Navigation mode: TWO-DIMENSIONAL code vision + inertial hybrid navigation;
  4. Drive mode: single steering wheel drive;
  5. Walking direction: forward, backward, 90°/180°/360° rotation, arc turning;
  6. Driving speed: ≤1.5m/s;
  7. Power battery: DC48V/80AH lithium iron phosphate battery, battery life of 8~12 hours, offline charging (automatic charging function optional).
  8. Note: The manipulator can be provided by the customer or by our company.
