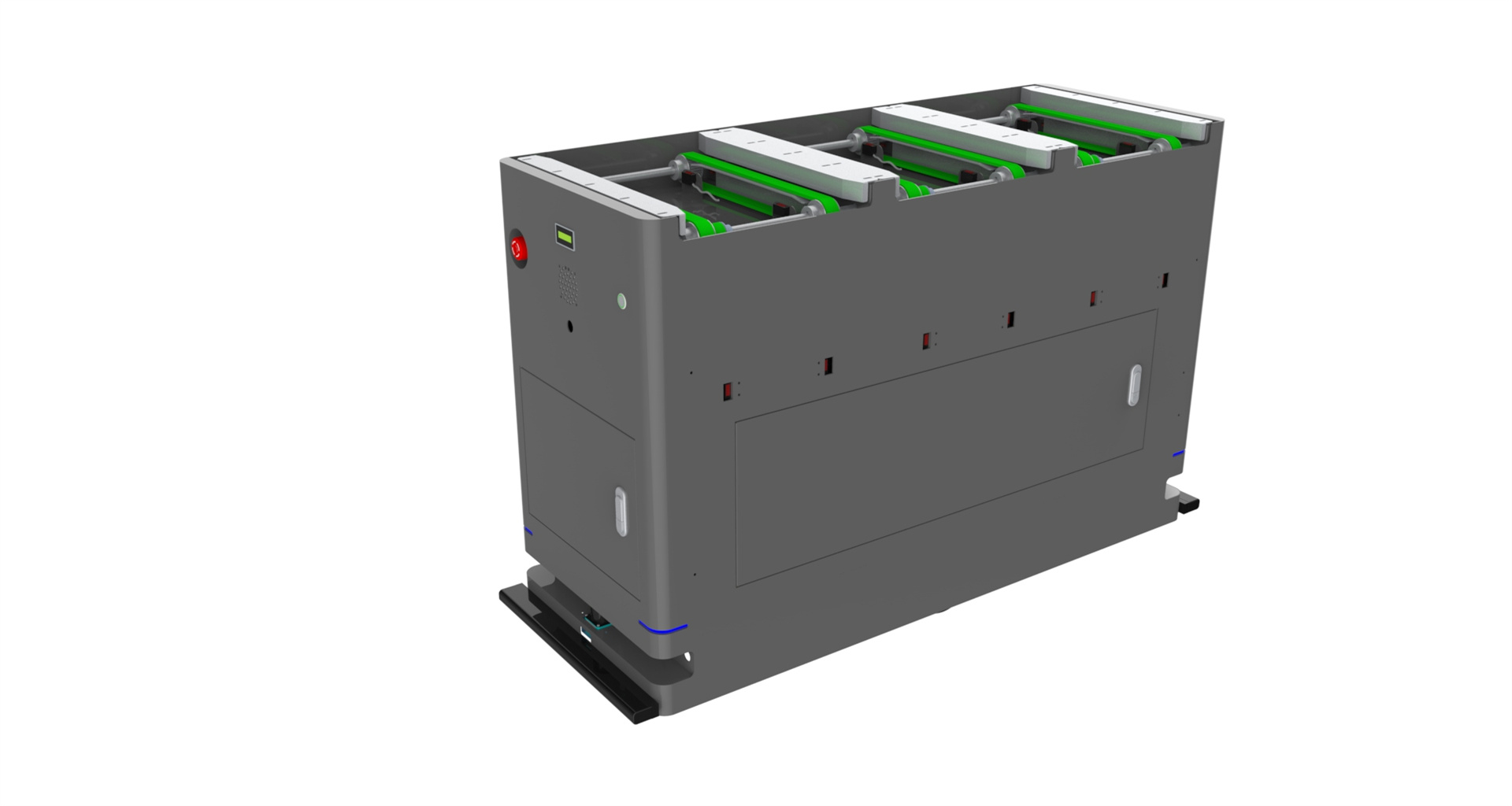

Bidirectional synchronous belt docking AGV （TL-TB-850SX-002）
Bidirectional synchronous belt docking AGV （TL-TB-850SX-002）
Bidirectional synchronous belt docking AGV （TL-TB-850SX-002）
- Load type: synchronous belt butt type, maximum load mass 100Kg;
- Overall size: L1400mm*W500mm*H875mm/ ground docking height 850mm (or customized size according to requirements);
- Navigation: magnetic strip navigation;
- Drive mode: differential drive;
- Walking direction: forward, backward, 90°/180°/360° rotation, arc turning;
- Driving speed: ≤40m/min;
- Power battery: DC24V/40AH lead-acid battery, battery life of 8~12 hours, offline charging (automatic charging function optional).
